Custom Forged Rolled Rings
- We produce high-precision forged rolled rings tailored to demanding applications like nuclear power and industrial machinery.
- With advanced technology and export experience, our rings ensure strength, corrosion resistance, and dimensional stability, saving time, labor, and cost in your critical operations.
- 18+ Years of Forging Expertise
- Custom Sizes and Materials Available
- ISO9001-certified Quality Assurance
- PED & AD2000 Compliance Guaranteed
Available Materials
For strength, durability, wear resistance, and corrosion resistance, we offer forged rolling rings in carbon, alloy, stainless, and tool steels.

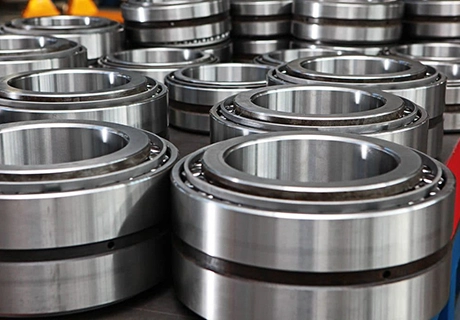

Carbon Steel Rolled Rings
- Common Grades: A105, 1045, 1020, C45, S355, Q345
- Durable and cost-effective, ideal for structural parts, flanges, pressure vessel components, and general industrial applications requiring strength and machinability.

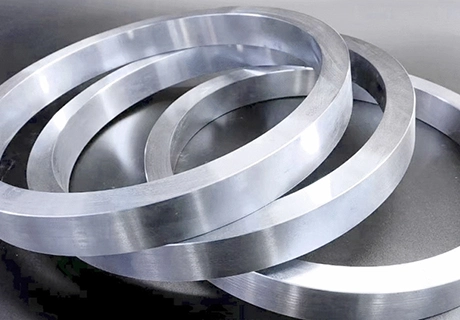

Alloy Steel Rolled Rings
- Common Grades: 4140, 4130, 4340, 8620, 42CrMo, 20CrMnTi, 34CrNiMo6
- Engineered for high strength, wear resistance, and toughness under demanding conditions, perfect for gears, bearings, shafts, and heavy-duty industrial components.

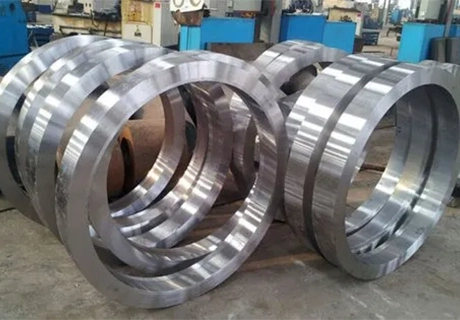

Stainless Steel Rolled Rings
- Common Grades: 304, 316, 316L, 410, 420, 17-4PH, 2205
- Resistant to corrosion and oxidation, suitable for marine, chemical, sanitary, and high-temperature environments requiring strength and clean surface performance.

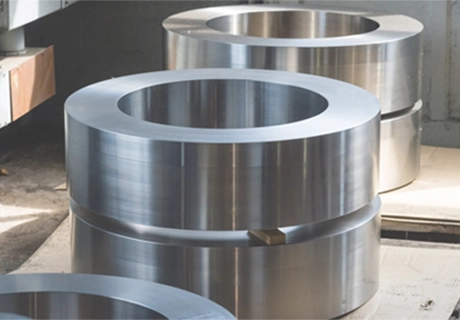

Tool Steel Rolled Rings
- Common Grades: H13, D2, A2, O1, M2, P20
- High hardness and wear resistance, designed for dies, molds, cutting tools, and applications requiring dimensional stability under heat and load.
Shape Options
To meet a variety of structural and performance application requirements, we provide flat, tapered, contour, rectangular, and hollow forged rolling rings.

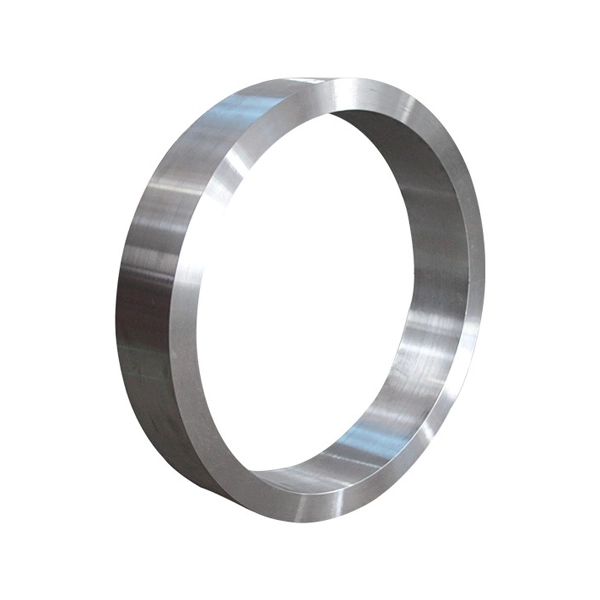

Flat Rolled Rings
- Uniform cross-section, ideal for bearings, flanges, and rotating parts.
- High accuracy and strength under axial and radial loads.
- Used in aerospace, construction, and automotive industries.

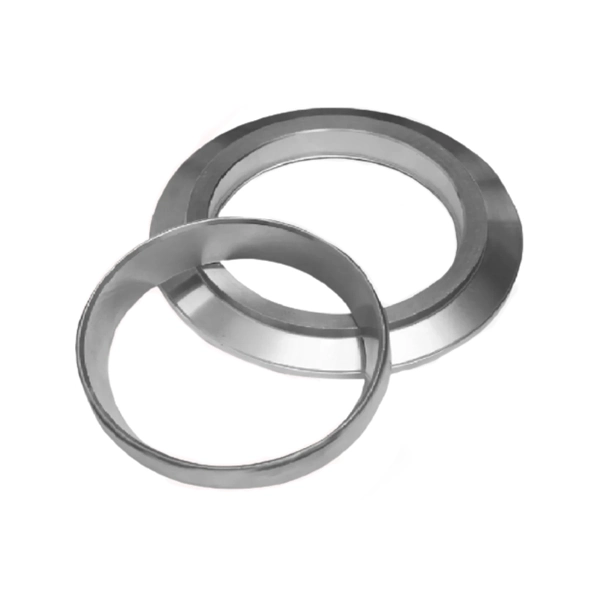

Tapered Rolled Rings
- Angled walls fit tapered components in high-stress systems.
- Reduces weight while ensuring structural integrity and alignment.
- Used in turbines, couplings, and transmissions.

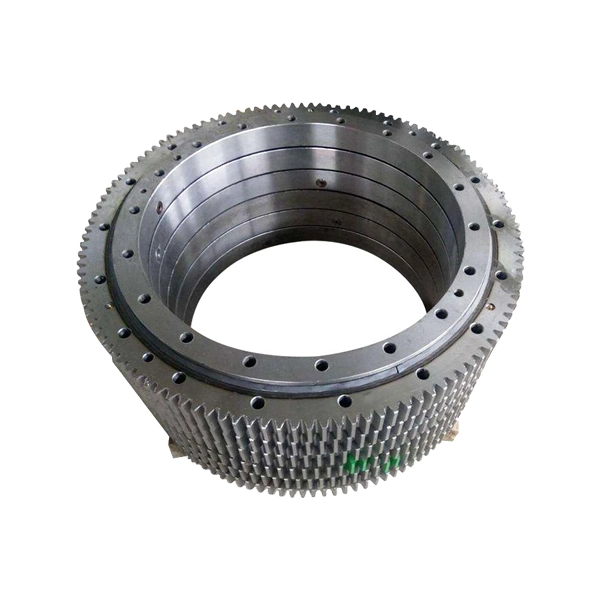

Contour Rolled Rings (Profiled Rolled Rings)
- Forged with complex profiles, reducing post-machining.
- Ideal for gear blanks, races, and stepped parts.
- Applied in energy, transport, and defense industries.

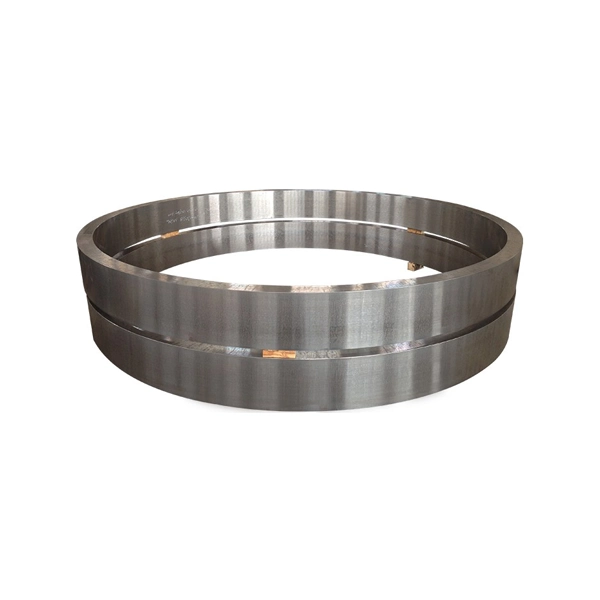

Rectangular Rolled Rings
- Square edges provide uniform load distribution.
- Common in hydraulic cylinders and precision housings.
- Offers strength and face alignment in static systems.
Custom Specifications for Forged Rolled Rings
We customize forged and rolled aluminum and steel rings based on your drawings, material requirements, inspection standards, and machining needs, with support for prototypes and small-batch production.
Custom Item | Available Options |
Manufacturing Process | Open-die forging, closed-die forging, and CNC radial-axial ring rolling processes |
Size Range | Outer diameter from 120–1800 mm; inner diameter based on drawings; wall thickness ≥ 10 mm |
Tolerance Capability | Concentricity / roundness ≤ 0.5–1.0 mm, depending on ring size |
End Face Perpendicularity | ≤ 0.5 mm / 300 mm |
Heat Treatment | T6 / T651 / T73 for aluminum; annealing, normalizing, and quenching & tempering for steel |
Common aluminum Grades | 6061, 6082, 7050, 7075, 2024, 5083, 2618 , 4032 |
Common Steel Grades | 1045, 4140, 4130, 4340, 8620, 42CrMo, 20CrMnTi, 304, 316, 17-4PH |
Inspection & Certification | UT, dimensional report, EN 10204 3.1 certificate; ASTM B594 / AMS-STD-2154 / ASTM A388 / EN 10228 upon request. |
Processing Condition | As-forged, as-rolled, rough-machined, or precision-machined according to drawings |
Order Support | Quotation based on drawings and specifications; prototype and small-batch production supported |
Our Forged Rolling Rings Production Process
We implement a precise forging and ring-rolling process to manufacture seamless, high-strength rings with exceptional dimensional accuracy and mechanical performance.
Material Cutting & Piercing
Billet Heating
Upsetting
Piercing to Donut Shape
Ring Rolling
Wall Thickness Adjustment
Cooling & Visual Inspection
Finish Machining
Final Inspection & Packaging
Seamless Rolled Rings vs. Conventional Rolled Rings
Item | Seamless Rolled Rings | Conventional Rolled Rings |
Structure | One-piece forged and rolled structure | Formed from plate, bar, or strip material |
Process | Forging, punching, and ring rolling | Bending, rolling, welding, or forming |
Strength | Higher and more uniform strength | Depends on material and forming method |
Grain Flow | Continuous grain flow | Less optimized grain structure |
Dimensional Stability | Better roundness and concentricity | Depends on forming and machining quality |
Cost | Higher initial cost, better long-term performance | Lower cost for simple applications |
Best For | Bearings, gears, flanges, turbines, pressure parts | Structural rings, light-duty parts, general fabrication |
Applications
Our rolled ring forgings are used in marine, defense, energy, mining, and petrochemical industries for strength, stability, and durability.
