Forged Metal Shafts Manufacturer
- Our custom shaft forging delivers strength, precision, and durability to meet the toughest industrial demands with tight tolerances.
- Each forged metal shaft is made to your specifications from design to delivery, ensuring reliable performance in power, marine, automotive, and heavy machinery.
- Custom Shafts Made to Your Drawings
- Large-size Forged Shafts Available
- Sample Service, MOQ is 1 Piece
- Urgent Delivery in 15–30 Days
- Monthly Output: 500–1000 Tons
- ISO9001, PED, SGS Certified
By Shaft Structure
We manufacture forged metal shafts in a variety of structural designs to meet diverse mechanical and operational demands across industries.

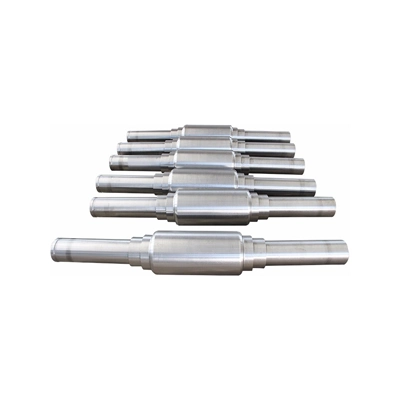

Stepped Shafts
- Varying diameters support gears, pulleys, and bearings.
- Smooth transitions reduce stress and improve strength.
- Used in gearboxes, turbines, and precision machinery.

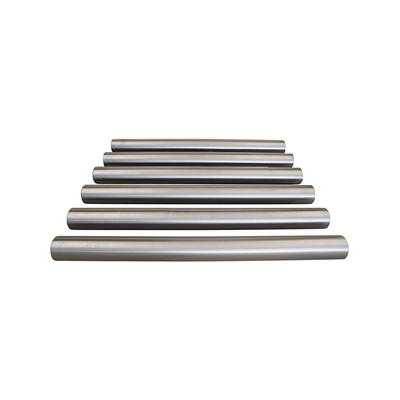

Straight Shafts
- Uniform diameter enables consistent torque transmission.
- Simple to machine and balance efficiently.
- Ideal for pumps, conveyors, and motors.
Hollow Shafts
- Bore reduces weight while maintaining strength.
- Enables internal routing for cables or fluids.
- Used in robotics and electric drives.

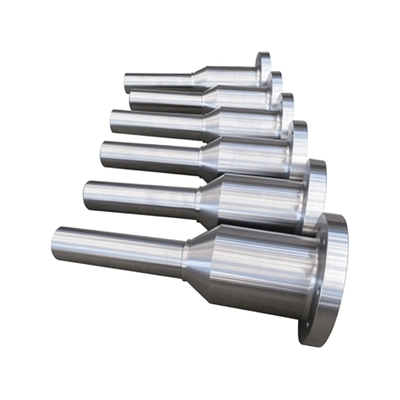

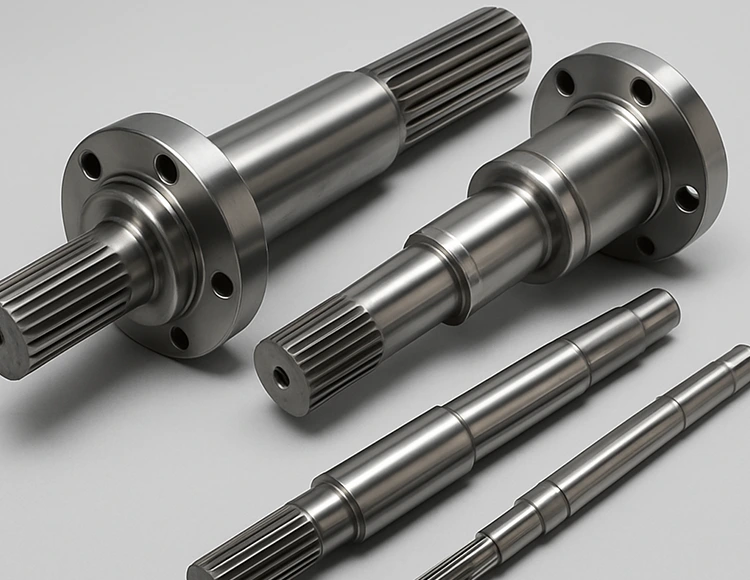

Flanged Shafts
- Flange connects directly with bolts or couplings.
- Easy to assemble and disassemble quickly.

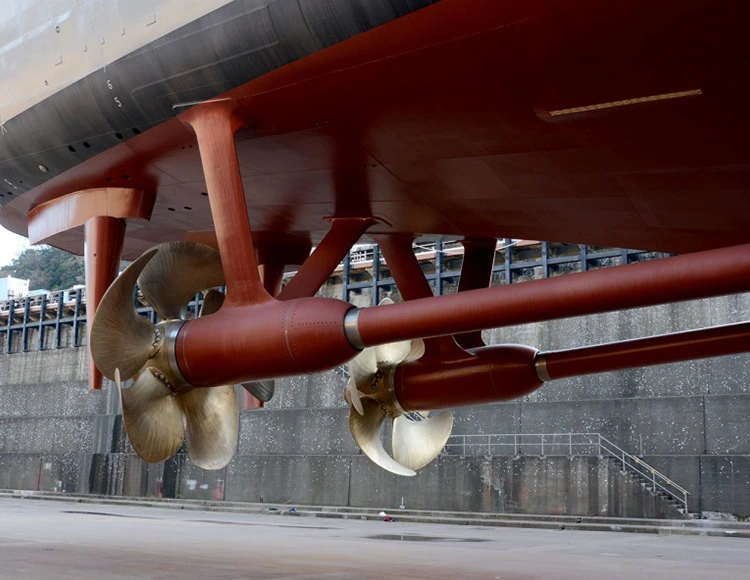

- Found in marine and power applications.

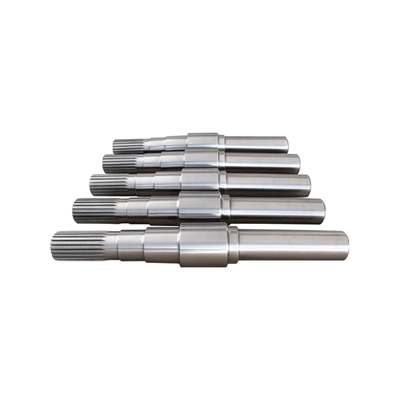

Spline Shafts
- External splines provide precise torque transfer.
- Support axial movement with rotational accuracy.
- Match straight, involute, or serrated profiles.

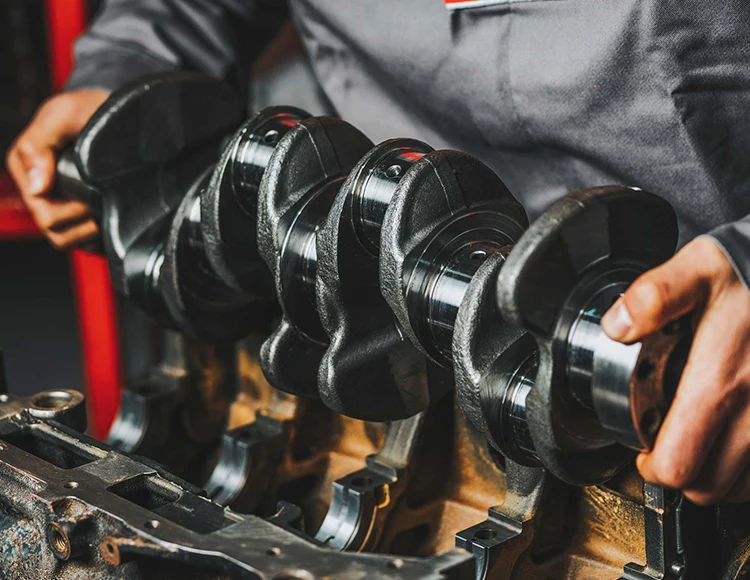

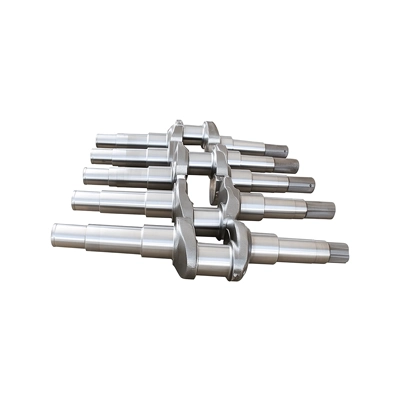

Crank Shafts
- Convert reciprocating motion into rotary drive.
- Include counterweights to reduce operational vibration.
- Used in engines, compressors, and presses.

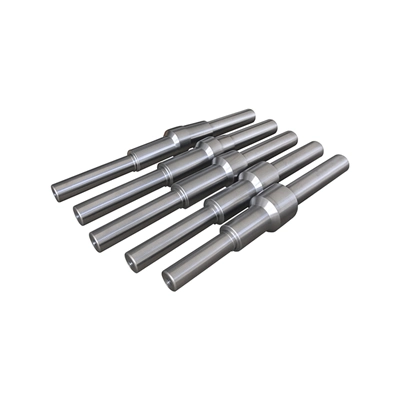

Eccentric Shafts
- Offset sections create controlled oscillating motion.
- Used in pumps, presses, and screens.
- Require high precision for smooth operation.
By Material
For your particular application, we provide a large selection of high-performance materials for forged shafts to guarantee optimal strength, longevity, and performance.
- Affordable and tough for general engineering and mechanical use.
- Good machinability, weldability, and wear resistance.
- Available in grades for specific strength and hardness needs.

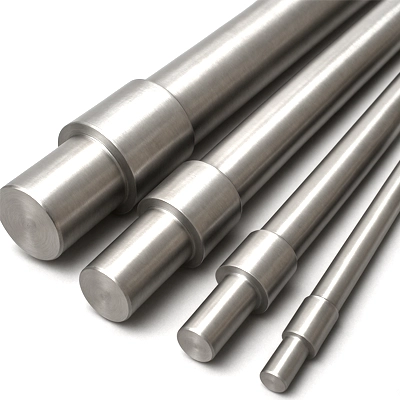

- Alloyed for improved strength, fatigue, and impact resistance.
- Ideal for aerospace, automotive, and high-load industries.
- Maintains performance under extreme stress, heat, and pressure.

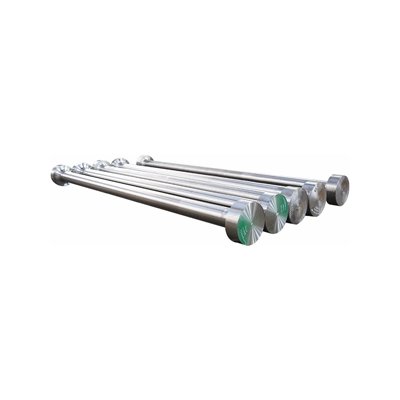

- Corrosion-resistant shafts for marine, food, and pharma use.
- Retains strength in corrosive or humid environments.
- 304, 316, 410 grades offer varying resistance levels.

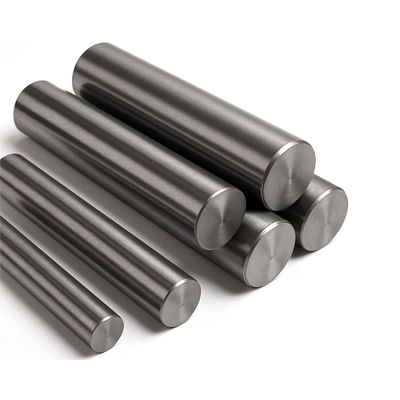

- Designed for wear, heat, and shock resistance.
- Grades like D2, H13, O1 offer excellent hardness.
- Used in dies, molds, and tooling applications.

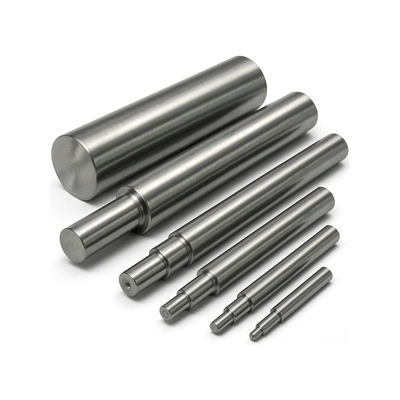

- Withstands heat, corrosion, and pressure in harsh conditions.
- Preferred in oil, chemical, and aerospace industries.
- Inconel, Monel offer thermal and structural reliability.

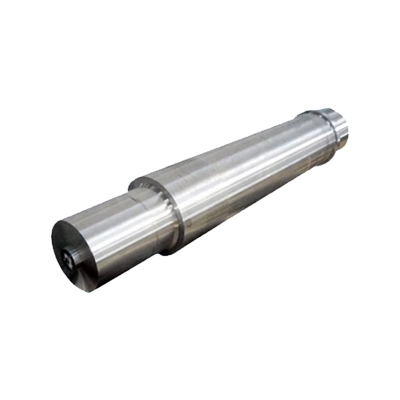

- Lightweight, strong shafts for aerospace and medical sectors.
- Offers biocompatibility, fatigue strength, and corrosion resistance.
- Ti-6Al-4V used in extreme, weight-sensitive environments.
Custom Forged Metal Shaft Specifications
We manufacture custom forged metal shafts in steel, nickel alloy, and titanium alloy, with flexible options for size, machining, heat treatment, and inspection.
Specification Item | Available Options |
Material | Steel, nickel alloy, titanium alloy |
Steel Grades | 1045, 4140, 4340, 42CrMo, 40Cr, 20CrMnTi, 304, 316 |
Nickel Alloy Grades | Inconel 600, 625, 718, Monel 400, Hastelloy C276 |
Titanium Grades | Grade 12, Grade 7, Grade 5 / Ti-6Al-4V, Grade 2 |
Diameter Range | Ø20 mm – Ø800 mm |
Length Range | 100 mm – 6000 mm |
Weight Range | 1 kg – 5000 kg |
Heat Treatment | Annealing, normalizing, quenching, tempering, carburizing, nitriding |
Hardness | HRC 20–60 / HB 180–320 |
Tolerance | ±0.01 mm – ±1 mm |
Surface Roughness | Ra 0.8 – Ra 6.3 |
Machining | CNC turning, milling, grinding, drilling, threading, spline cutting |
Surface Treatment | Black oxide, galvanizing, painting, polishing, anti-rust oil |
Inspection | Dimension check, hardness test, UT, MT, material report |
Our Forged Shaft Production Process
We utilize a controlled, multi-step forging process to ensure exceptional strength, precision, and performance in every forged metal shaft produced.
Material Inspection
Billet Cutting Preparation
Billet Pre-Heating Furnace
Initial Forging Operation
Upsetting End Formation
Groove Fullering Process
Intermediate Die Blocking
Flash Trimming Execution
Normalize Treatment and Storage
