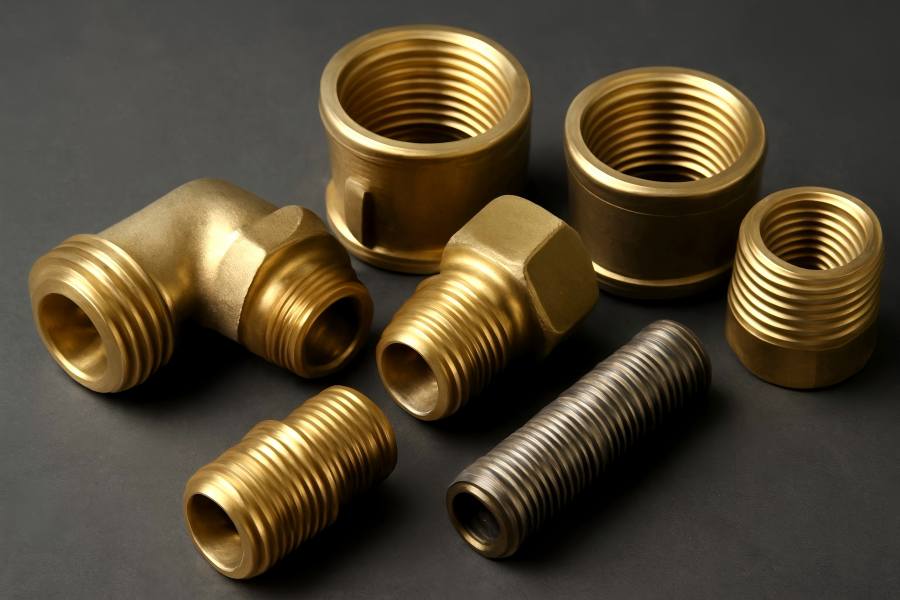

Metal pipe fittings are essential for connecting, terminating, or branching pipe systems that transport liquids, gases, and other materials. Proper threading ensures tight, leak-proof seals, secure connections, and safe, efficient fluid or gas transport, especially in high-pressure or harsh environments.
This article explores various threading types used in metal pipe fittings, focusing on their characteristics, advantages, and limitations to help engineers and system designers make informed decisions for optimal performance in industries like oil and gas, water treatment, HVAC, and construction.
What is Threading in Metal Pipe Fittings?
Threading refers to the spiral ridges or grooves that are cut into the surface of a pipe or fitting. These grooves allow the components to engage mechanically when threaded together, providing a secure connection. In metal pipe fittings, the threads ensure a leak-tight seal that can withstand pressure, temperature fluctuations, and the flow of various materials.
Threading is commonly used to connect pipe sections, valves, and other components.
The design of the threads—whether tapered, parallel, or straight—varies according to the threading standard being applied. The particular threading system selected is determined by the temperature, pressure, and material compatibility of the application. There are also industry standards and regulations that guide the use of various threading systems, ensuring uniformity and safety across systems.
Types of Threading for Metal Pipe Fittings
Several threading systems are commonly used for metal pipe fittings, each suited to different applications. Below, we will explore the most widely used types of threading in the industry: NPT, BSPT, BSPP, NPSM, MNPT/FNPT, and UNF.
NPT (National Pipe Thread)
National Pipe Thread (NPT) is one of the most commonly used threading systems in North America. The diameter of NPT threads reduces as they travel further into the fitting because they are tapered. This tapering ensures a tight seal by increasing the pressure against the threads as they are screwed into place.
| Pros | Cons |
| Provides a leak-proof connection. | Can be difficult to reuse. |
| Tapered threads offer self-sealing. | Requires careful handling to avoid cross-threading. |
| Common in high-pressure applications. | Difficult to install without proper tools. |
| Widely used in various industries. | Tapering may cause misalignment during installation. |
Applications:
- Oil and gas pipelines.
- HVAC systems.
- Water and wastewater systems.
BSPT (British Standard Pipe Thread)
British Standard Pipe Thread (BSPT) is another widely used threading system, especially in the UK and countries that use the imperial measurement system. Like NPT, BSPT threads are tapered to provide a tight seal. However, BSPT differs in its thread angle, making it slightly incompatible with NPT fittings.
| Pros | Cons |
| Provides a strong, leak-resistant seal. | Not compatible with NPT fittings. |
| Commonly used in international systems. | Requires precise installation to avoid leaks. |
| Durable in high-pressure applications. | May require additional sealing components. |
Applications:
- Used extensively in plumbing and fluid systems.
- Common in oil and gas pipelines and machinery.
BSPP (British Standard Parallel Pipe Thread)
Unlike BSPT, British Standard Parallel Pipe Thread (BSPP) features parallel threads, rather than tapered ones. Instead of using the threads themselves, this technique uses external sealing elements like O-rings or washers to produce a tight seal between fittings.
| Pros | Cons |
| Allows for reusable connections. | Requires external sealing components. |
| More flexible with sealing methods. | Not ideal for high-pressure sealing. |
| Easier to install compared to tapered threads. | Can leak if external seals are improperly installed. |
Applications:
- Used in hydraulic systems and fluid power applications.
- Plumbing and general industrial uses are common.
NPSM (National Pipe Straight Mechanical Thread)
National Pipe Straight Mechanical (NPSM) threading features straight threads, rather than tapered threads, making it suitable for mechanical connections where a tight seal is not required. NPSM threads are designed for non-sealing, mechanical fit applications.
| Pros | Cons |
| Easy to install and remove. | Not suitable for sealing applications. |
| Ideal for low-pressure systems. | Requires external sealing components. |
| Simplifies alignment and adjustment. | May leak if not properly sealed. |
Applications:
- Used in water and sewer systems.
- Mechanical fastenings in construction and industrial equipment.
MNPT (Male NPT) and FNPT (Female NPT)
Both Male NPT (MNPT) and Female NPT (FNPT) are variations of the NPT system. The gender of the fittings makes a difference: female fittings have internal threads, whereas male fittings have external threads. These fittings can be paired with each other to form a secure connection.
| Pros | Cons |
| Can be used in high-pressure applications. | Difficult to reuse after installation. |
| Compatible with various industrial fittings. | Vulnerable to damage during installation. |
| Easy to install with appropriate tools. | Requires sealing components for leak prevention. |
Applications:
- Used widely in industries that require secure, high-pressure pipe connections, such as oil and gas.
- Common in general plumbing and HVAC systems.
UNF (Unified Fine Thread)
The Unified Fine Thread (UNF) is a thread system typically used in mechanical applications. Because of its small, closely spaced threads, it is perfect for applications that call for extreme strength and accuracy.
| Pros | Cons |
| Offers high strength and precision. | Not suitable for sealing applications. |
| Ideal for high-stress mechanical connections. | Requires tight tolerances for proper fit. |
| Compatible with high-performance materials. | May cause thread damage under extreme pressure. |
Applications:
- Automotive applications.
- Aerospace and machinery requiring high-strength, precision connections.
Factors to Consider When Choosing Threading Types
When choosing the right threading system for metal pipe fittings, it is important to take several factors into account. The primary elements influencing the decision are summarized in the following table.
| Factor | Consideration |
| Material Compatibility | Make sure the pipe or fitting’s material is suitable with the threading system. |
| Pressure and Temperature | Consider the operating pressure and temperature for the application. |
| Sealing Mechanism | Determine whether the threading system is designed for sealing or requires external components. |
| Standards and Codes | Ensure compliance with industry standards and regulations (e.g., ASME, ISO). |
| Ease of Installation | Choose a threading system that is easy to install and adjust without damage. |
| Maintenance and Reusability | Consider the long-term durability and ease of maintenance when reusing fittings. |
How to Properly Install Threaded Pipe Fittings
The integrity and operation of threaded pipe fittings depend on proper installation. Below is a step-by-step guide to help you install threaded fittings correctly:
- Clean the Threads: Before installation, ensure that both male and female threads are clean and free from debris.
- Lubricate the Threads (Optional): Applying thread lubricant or sealant will help prevent galling and ease the installation process.
- Align the Fittings: Properly align the male and female threads to avoid cross-threading and ensure a tight fit.
- Tighten the Fittings: Use a wrench or appropriate tool to tighten the connection. Avoid over-tightening to prevent damaging the threads.
- Check for Leaks: After installation, test the system by pressurizing it and checking for any leaks at the connection points.
Threading Standards and Regulations
For dependable performance, compatibility, and safety, threading standards must be followed. Standards are provided by various international organizations, including the American Society of Mechanical Engineers (ASME) and the International Organization for Standardization (ISO).
By following these standards, engineers can ensure that their systems are built to meet required specifications, avoiding potential failures or safety hazards.
