Swivel Flange
- Our swivel flanges provide secure pipe connections, precise alignment, corrosion resistance, and pressure tolerance, ensuring reliable performance across industrial, chemical, oil, gas, and water systems.
- We offer customized services to provide tailored solutions for your pipelines, shortening installation time and ensuring optimal sealing under all conditions.
- Size Customization: ½"–60" Diameter, Schedules 40–160, Special Bore Options Available.
- Surface Treatment: Polishing, Galvanizing, Anti-rust Coating, Heat-treated Surfaces.
- Pressure Ratings: Class 150–2500, Adjustable for Your Aystem Requirements.
Get a Quote

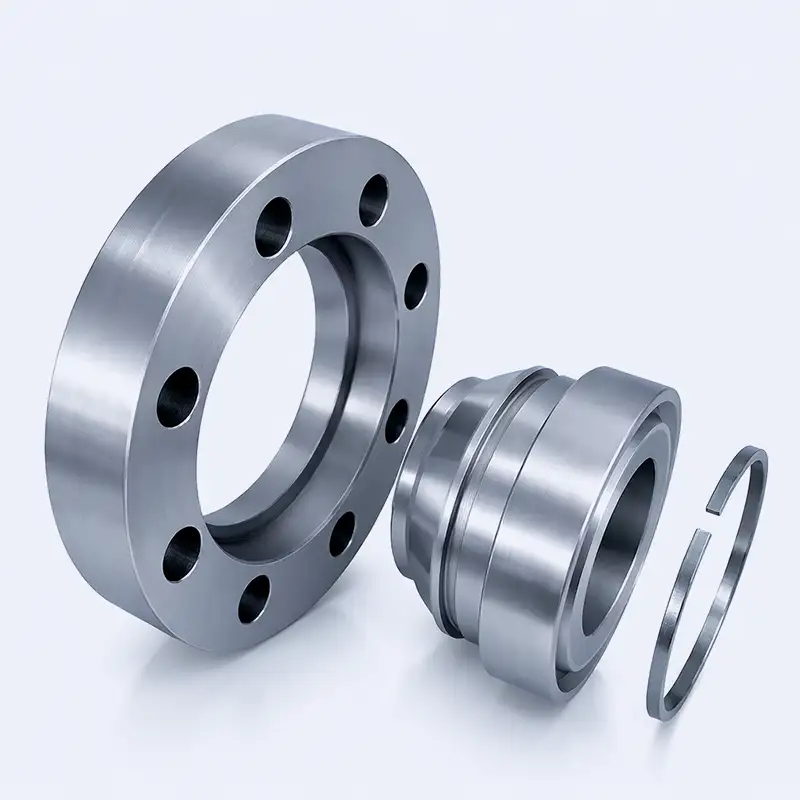

Component of Swivel Flange
Forged Outer Ring
- Rotates around the pipe to allow precise alignment with mating flanges.
- Ensures easy installation without moving the pipe.
- Provides a bolt connection surface compatible with standard flange patterns.
Heavy Forged Welding Hub
- Forms the structural connection to the pipe through welding or threading.
- Provides strength and stability under high-pressure and high-temperature conditions.
- Supports rotational movement of the outer ring without compromising integrity.
Gasket
- Sits between the flange faces to create a leak-proof seal.
- Available in materials suitable for specific fluids, temperatures, and pressures.
- Can be flat, raised, or ring type, depending on flange design.
By Connection Type

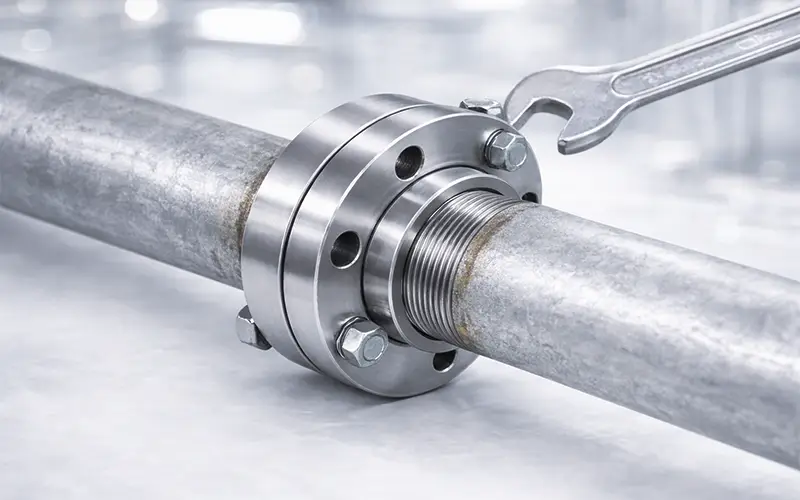

Threaded Swivel Flange
- Screws onto the pipe
- Suitable for low pressure
- Easy to install/remove
- No welding required
Get a Quote

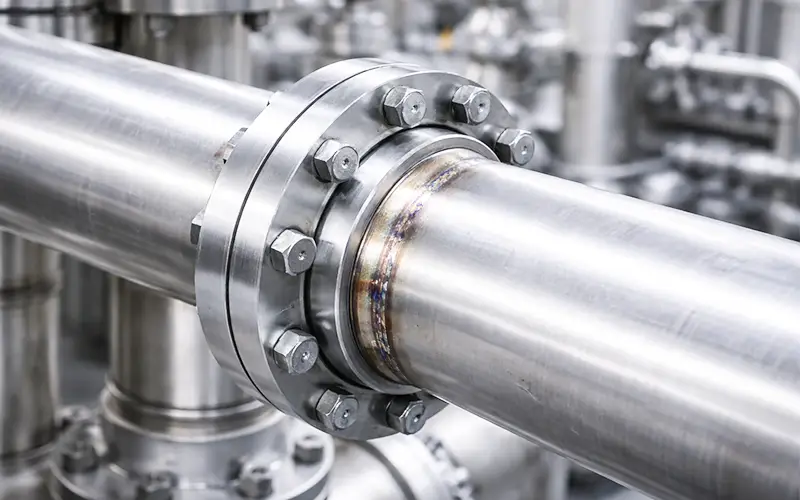

Welded Swivel Flange
- Permanently welded to pipe
- Handles high pressure
- Stable and reliable
- Critical industrial use
Get a Quote

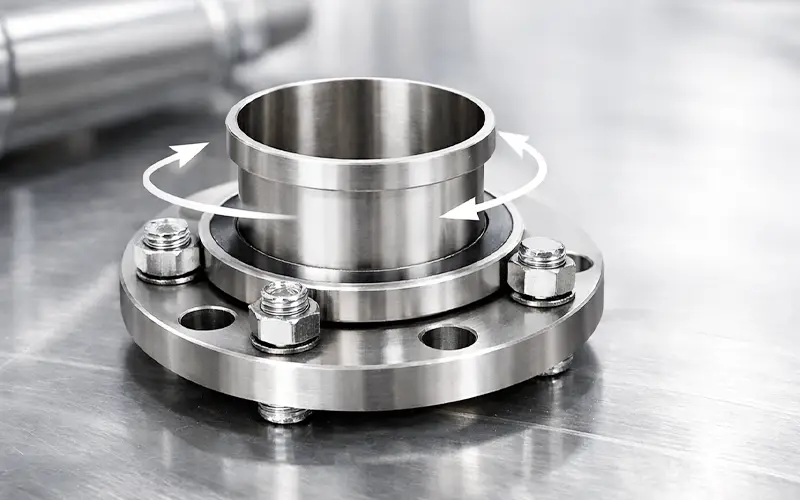

Lap Joint Swivel Flange
- Works with stub end
- Allows free rotation
- Easy alignment
- No welding for flange
Get a Quote
By Face Type

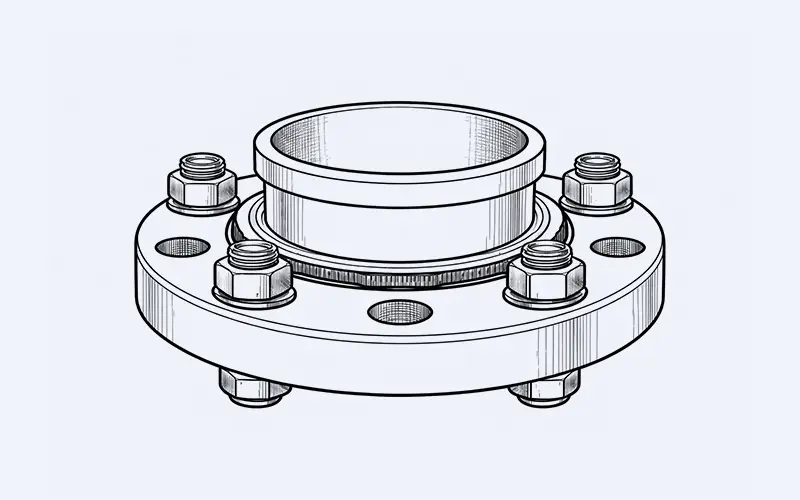

Flat Face (FF)
- Flat sealing surface
- Even bolt load distribution
- Ideal for low pressure
- Works with full gaskets
Get a Quote

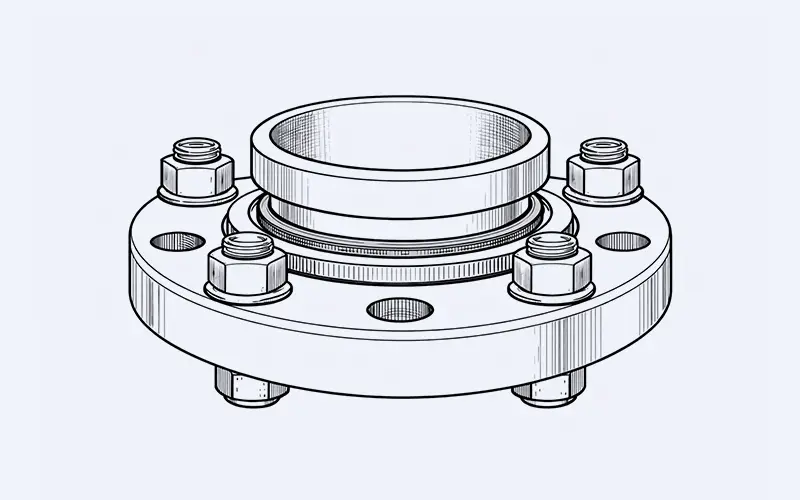

Raised Face (RF)
- Raised sealing surface
- Improves gasket compression
- Medium to high pressure
- Compatible with soft gaskets
Get a Quote

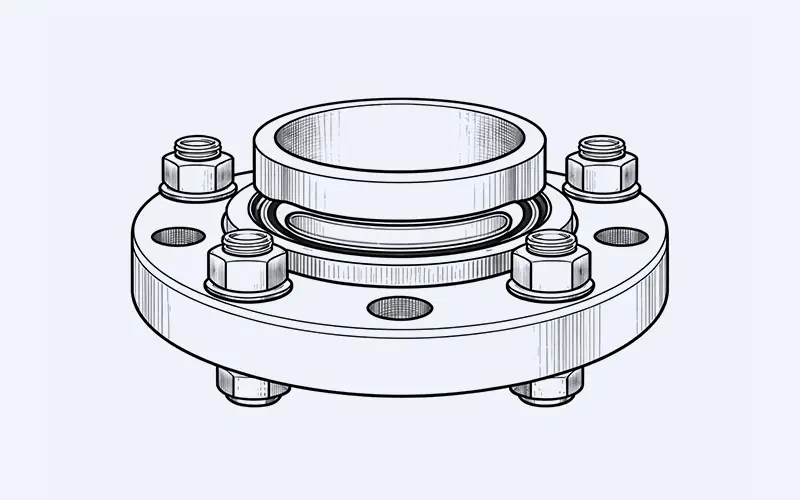

Ring Type Joint (RTJ)
- Groove for metal ring gasket
- High-pressure sealing
- Precision-machined
- Common in oil & gas
Get a Quote
By Material
Carbon Steel
- A105, A350 LF2, etc.
- High tensile strength, good machinability.
- Water pipelines, ordinary industrial piping, and low to medium pressure systems.
- Cost-effective, widely available.
Stainless Steel
- 304, 316, 316L, etc.
- Excellent corrosion and oxidation resistance.
- Food & beverage, chemical processing, pharmaceutical, marine environments.
- Durable in corrosive environments, low maintenance.

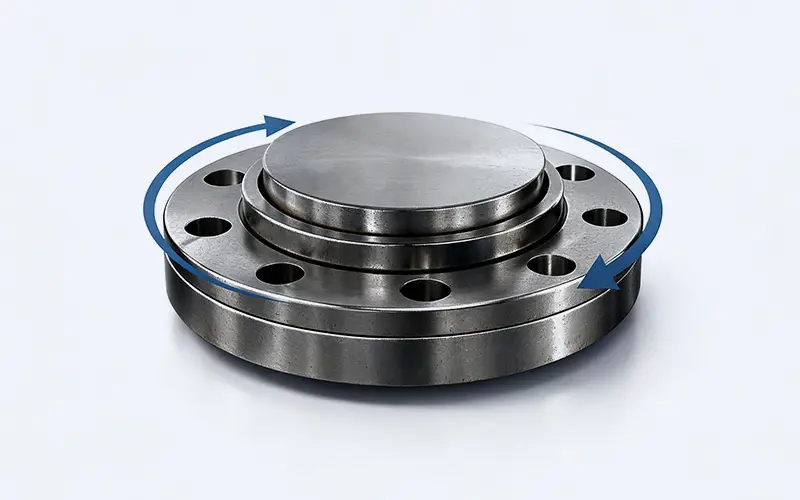

Alloy Steel
- Chrome-moly (e.g., A182 F11, F22)
- High strength, appropriate for high-temperature and high-pressure applications.
- Power plants, steam systems, oil & gas pipelines.
- Withstands extreme conditions.

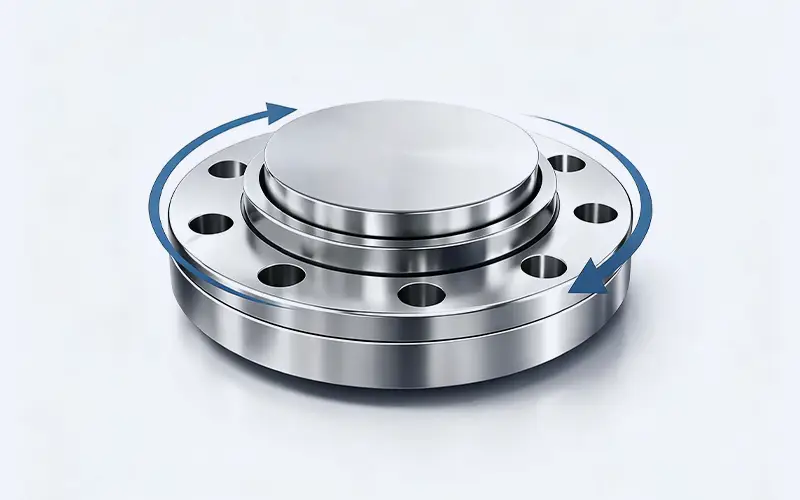

Nickel Alloys
- Inconel, Monel, Hastelloy
- Outstanding resistance to corrosion and heat.
- Chemical plants, petrochemical, and environments with strong acids or caustics.
- Ideal for highly corrosive or extreme environments.
By Pressure Class (ASME / ANSI)
ASME / ANSI Class | Max Working Pressure @ 100°F | Recommended Face Type | Gasket Types |
Class 150 | 285 psi (19.6 bar) | Flat Face (FF), Raised Face (RF) | Soft full-face gaskets, spiral wound, non-metallic gaskets |
Class 300 | 740 psi (51 bar) | Raised Face (RF) | Spiral wound, ring gaskets, soft full-face gaskets |
Class 600 | 1480 psi (102 bar) | Raised Face (RF) | Spiral wound, ring gaskets, metal-reinforced gaskets |
Class 900 | 2220 psi (153 bar) | Ring Type Joint (RTJ), Male-Female Face | Metal RTJ gaskets, heavy-duty spiral wound gaskets |
Class 1500 | 3705 psi (256 bar) | Ring Type Joint (RTJ), Male-Female Face | Metal RTJ gaskets, heavy-duty spiral wound gaskets |
Class 2500 | 6250 psi (431 bar) | Ring Type Joint (RTJ), Male-Female Face | Metal RTJ gaskets, heavy-duty spiral wound gaskets |
Get a Quote
Applications
Oil & Gas
- For oil and gas pipelines
- Handles pressure fluctuations
- Tolerates temperature variations
- Critical pipeline safety
Chemical / Process
- Resistant to corrosive fluids
- Handles high-temperature fluids
- Industrial piping
- Easy maintenance

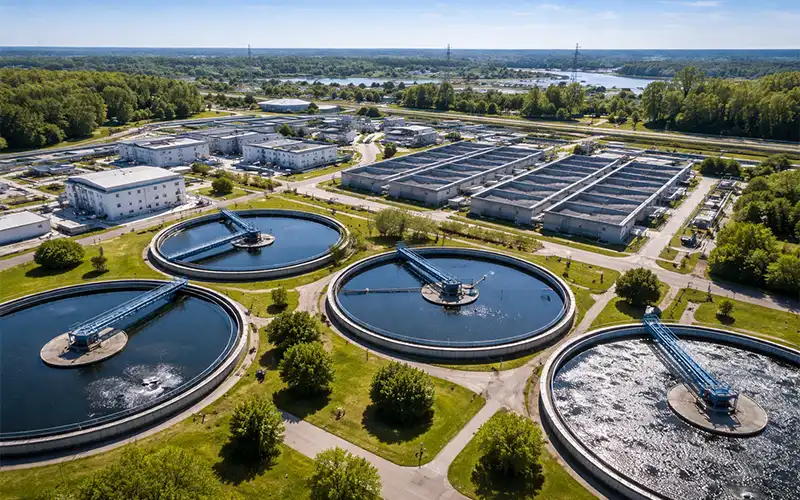

Water Treatment / HVAC
- Flexible pipe alignment
- Easy maintenance
- Low to medium pressure
- Common in piping networks
Contact Us Now
FAQs
What is a swivel flange?
A swivel flange is a rotating pipe flange allowing easy alignment without rotating the pipe itself.
Can swivel flanges be customized?
Yes, we offer custom sizes, materials, face types, threads, and machining tolerances for specialized pipelines.
How is a swivel flange installed?
Threaded flanges screw onto the pipe, welded flanges are welded in place, lap joint flanges fit over stub ends.
What are a swivel flange's primary advantages?
Easy alignment, reduced installation time, reliable sealing, corrosion resistance, and suitability for high-pressure systems.
Can swivel flanges handle high temperatures?
Yes, depending on the material, they can operate in high-temperature applications like steam or industrial fluids.
Do you provide certifications for swivel flanges?
Yes, we provide material test certificates, pressure ratings, and compliance with ASME, ANSI, DIN, or JIS standards.
