Forging is a crucial process in contemporary manufacturing that shapes metals into precise and robust components. One often overlooked factor is the metal’s melting point. Even though forging happens below this temperature, knowing it helps improve efficiency, reduce energy use, and avoid defects.
This guide looks at how melting points affect forging, compares different metals, and gives tips on planning, choosing equipment, and preventing problems, all based on melting point knowledge.
Introduction to Forging and Melting Points

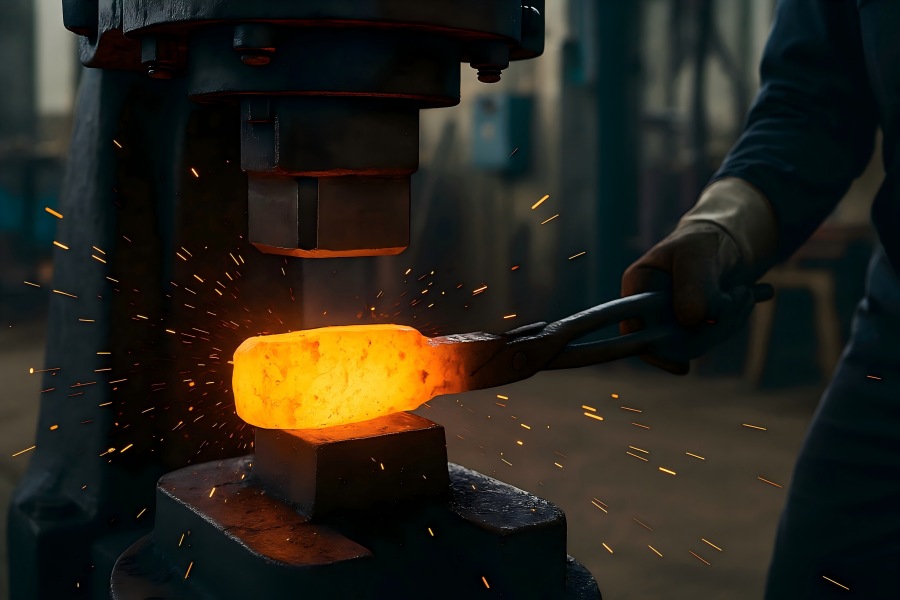

Forging is one of the oldest and most trusted methods for shaping metal, used for thousands of years. From blacksmiths to modern factories, the idea is the same: use pressure to shape metal. In sectors including heavy machinery, automotive, energy, and aerospace, forged parts are robust, long-lasting, and extensively utilized.
However, forging isn’t just about hitting hot metal. It involves careful control of heat and material properties. One key factor is the metal’s melting point—the temperature at which it turns from solid to liquid.
Even though forging happens below this point, the melting temperature still matters. It helps set working temperatures, choose the right tools, control metal flow, and avoid defects. Understanding this enables manufacturers to produce more precise, dependable, and effective parts.
What Is the Melting Point in Metallurgy?
In metallurgy, the temperature at which a pure metal or alloy changes from solid to liquid at standard atmospheric pressure (1 atm) is known as its melting point. Based on the atomic structure and bonding strength of each metal, it is a fundamental thermodynamic feature that is exclusive to that metal. Melting points are often higher for metals with more compact atomic structures and stronger metallic connections. For example:
- Tungsten: ~3,422°C (6,192°F) – highest melting point of all metals
- Iron: ~1,538°C (2,800°F)
- Aluminum: ~660°C (1,220°F)
In forging, however, the workpiece is not brought to its melting point. Instead, forging is performed below this temperature—within a range where the metal becomes soft and ductile but still retains its solid state. This range is called the plastic deformation zone, and mastering it is key to successful forging.
For alloys, the situation becomes more complex. Most alloys have a melting range rather than a fixed point due to varying compositions of different elements. This range spans from the solidus temperature (when melting begins) to the liquidus temperature (when completely molten).
Why the Melting Point Matters in Forging
Even though forging avoids full melting, the melting point sets the upper thermal limit for process control. Several reasons make this property critical in the forging workflow:
Process Classification
Forging is typically divided into:
- Cold forging: < 0.3 × melting point (in Kelvin)
- Warm forging: 0.3–0.5 × melting point
- Hot forging: 0.6–0.9 × melting point
Understanding the metal’s melting point allows engineers to place the forging process in the right category, which directly affects tool design, material handling, and energy consumption.
Prevention of Overheating
Exceeding safe thermal limits close to the melting point can cause surface melting, grain growth, or even burning. This may cause the final part’s mechanical qualities to deteriorate significantly or become useless.
Optimizing Plasticity
Most metals achieve optimal ductility and formability when heated within a safe range below their melting point. This balance ensures efficient shaping while minimizing fracture risk and reducing required force.
Equipment and Die Material Considerations
Forges, dies, and hammers must withstand the operational temperature of the metal. Materials selected for dies and tooling must consider the thermal load, which depends on how close forging temperatures are to the metal’s melting point.
The Relationship Between Forging Temperature and Melting Point
The forging temperature is almost always a fraction of the metal’s melting point, typically expressed as a percentage of absolute temperature (Kelvin):
| Forging Type | Temperature Range (% of Melting Point in Kelvin) |
| Cold Forging | < 30% |
| Warm Forging | 30–50% |
| Hot Forging | 60–90% |
For example, consider steel with a melting point of ~1,538°C (1,811 K). Its hot forging temperature typically ranges from 1,100°C to 1,250°C (1,373–1,523 K), which corresponds to 76–84% of the melting point in Kelvin. This ensures the material is workable while maintaining structural integrity.
In addition to the melting point, the optimal forging temperature is determined by:
- Workpiece size and geometry
- Desired mechanical properties
- Tooling constraints
- Surface treatment and lubrication
- Heating method (induction, gas furnace, electric resistance)
How Recrystallization Temperature Differs from Melting Point
In forging, recrystallization temperature plays a more critical role in deformation than the melting point itself. While the melting point marks the boundary between solid and liquid phases, the recrystallization temperature defines when a cold-worked metal’s internal structure begins to regenerate new, strain-free grains.
Key Differences:
| Property | Recrystallization Temperature | Melting Point |
| Definition | Temperature where new grains form in deformed metal | Temperature where metal becomes fully liquid |
| State of Material | Solid (with grain regeneration) | Liquid transition |
| Typical Value | ~0.3–0.5 × melting point (in Kelvin) | Unique to metal (in °C or °F) |
| Purpose in Forging | Reduces hardness and improves ductility | Not used directly in forging, but sets thermal boundary |
| Relevance to Tool Design | Guides for heating plastic deformation | Guides maximum die and furnace limits |
Recrystallization eliminates the effects of strain hardening from prior processing and makes the metal more ductile, which is ideal for forging. If a workpiece is heated below this temperature, it retains dislocations, making it more resistant to deformation and prone to cracking. If it’s heated above this range but below the melting point, forging becomes efficient and material flow improves.
For example:
- Aluminum has a melting point of 660°C but a recrystallization temperature around 150–250°C.
- Steel melts at ~1,538°C but recrystallizes around 450–700°C.
Thus, forging is typically done above the recrystallization temperature but well below the melting point to optimize energy input, tool life, and part quality.
Hot, Warm, and Cold Forging
Based on the relationship between the working temperature and the metal’s recrystallization temperature (which in turn relates to melting point), forging processes are divided into three main categories:
Hot Forging
Temperature: Above recrystallization, ~0.6–0.9 × melting point.
| Pros | Cons |
| High formability | Surface oxidation |
| Lower force requirements | Dimensional inaccuracy |
| Continuous grain flow | Higher energy consumption |
Example: Steel is often hot forged at 1,100–1,250°C.
Warm Forging
Temperature: Around recrystallization, ~0.3–0.6 × melting point.
| Pros | Cons |
| Good balance between formability and tool life | Still requires heating |
| Lower scale formation | Intermediate forging loads |
| Improved surface finish |
Example: Aluminum warm forged at ~250–400°C.
Cold Forging
Temperature: Below recrystallization, <0.3 × melting point.
| Pros | Cons |
| Excellent surface finish | High loads required |
| High-dimensional accuracy | Limited complexity in shapes |
| Work hardening benefits | Risk of cracking brittle materials |
Example: Cold heading of bolts and fasteners from carbon steel rods.
Understanding melting and recrystallization temperatures allows engineers to select the right category for their part geometry, alloy type, and production scale.
Melting Points of Common Forging Metals
Here’s a detailed table comparing melting points and their significance in forging practice:
| Metal/Alloy | Melting Point (°C) | Typical Forging Range (°C) | Forging Type | Notes |
| Pure Iron | 1,538 | 1,100–1,250 | Hot | Basis for many steels |
| Carbon Steel | ~1,425–1,530 | 1,050–1,250 | Hot/Warm | Composition affects melting temperature and workability |
| Stainless Steel | ~1,400–1,530 | 1,100–1,200 | Hot | Cracking resistance depends on alloying elements |
| Aluminum (pure) | 660 | 350–500 | Warm/Hot | Excellent formability, risk of sticking to die |
| Titanium (pure) | 1,668 | 900–1,200 | Hot | Requires protective atmosphere to prevent oxidation |
| Nickel 718 Alloy | ~1,350 | 980–1,175 | Hot | Difficult-to-forge, used in turbine parts |
| Magnesium Alloys | 540–650 | 300–450 | Warm/Hot | Flammable at high temps; processed in controlled environments |
| Copper (pure) | 1,085 | 700–900 | Warm/Hot | Sensitive to oxidation and de-zincification |
| Brass (Cu-Zn) | ~900 | 650–850 | Warm/Hot | Common for decorative and low-friction parts |
This comparison reinforces how melting point awareness helps prevent excessive temperature input that could lead to oxidation, burning, or die failure.
Effects of Alloying Elements on Melting Behavior
Adding alloying elements to base metals can dramatically alter the melting point and forgeability. Most alloys exhibit melting over a temperature range instead of at one distinct temperature point.
Key Impacts:
Lowering Melting Point:
- Elements like tin, lead, zinc, and silicon can lower the melting point.
- Example: Compared to pure lead or tin, solder (lead-tin) has a substantially lower melting point.
Raising Melting Point:
- Elements like tungsten, molybdenum, and niobium increase melting temperature and improve high-temperature performance.
- Used in aerospace-grade superalloys.
Creating Eutectic Mixtures:
- At a specific composition, some alloys melt at a single sharp temperature—this is called the eutectic point.
- Example: Eutectic aluminum-silicon alloy melts at 577°C, which is lower than pure aluminum (660°C).
Forming Intermetallic Compounds:
In some cases, alloying forms compounds that don’t melt easily or require decomposition before melting, complicating the forging process.
Understanding alloy behavior is essential when selecting materials for demanding applications like turbine blades, surgical implants, or pressure vessels.
How Melting Points Affect Forge Die Design
Forge dies are critical tools in shaping metal, and their design must accommodate the intense thermal and mechanical loads encountered during forging. A key factor influencing die material selection, cooling strategies, and surface treatments is the melting point of the metal being forged.
Die Material Selection
The forging temperature—directly influenced by the workpiece’s melting point—determines the type of die material required. Dies must maintain strength, hardness, and thermal stability throughout the forging cycle.
| Forged Metal | Typical Forging Temp (°C) | Suitable Die Material | Reason |
| Steel | 1,100–1,250 | H13 Tool Steel | High hot hardness and toughness |
| Aluminum | 350–500 | H11 or H13 Tool Steel | Resistance to thermal fatigue |
| Copper | 700–900 | Chromium Hot Work Steels | Good oxidation and wear resistance |
| Titanium | 900–1,200 | Nickel-based Superalloys | Requires high thermal and oxidation resistance |
| Magnesium | 300–450 | Tool Steel with coatings | Lightweight but requires anti-sticking treatments |
The closer a forging temperature is to a metal’s melting point, the greater the thermal demands on the die. For high-temperature applications, ceramic dies or composite tool steels may be used to extend tool life.
Thermal Expansion and Die Tolerance
Metals with high melting points are often forged at elevated temperatures, causing significant thermal expansion of the die. Die designers must compensate for this expansion to maintain dimensional tolerances.
- If the die and workpiece’s thermal mismatch is not taken into consideration, it may cause distortion or cracking.
- In closed-die forging, thermal cycling can lead to fatigue cracking due to repeated expansion/contraction.
Modern simulation tools help forecast thermal behavior, allowing engineers to design pre-stressed or cooled die assemblies to handle high thermal gradients.
Cooling Systems
High forging temperatures require dies to be actively cooled to prevent:
- Excessive wear.
- Oxidation.
- Cracking or thermal shock.
Water-cooled or air-cooled channels are integrated into die structures. For metals with melting points above 1,200°C (e.g., titanium, steel), lubricants and thermal coatings (e.g., ceramic films, nitrides) are applied to extend die life and maintain surface finish.
Surface Treatments and Anti-Adhesion Coatings
When forging metals with relatively low melting points like aluminum or magnesium, there’s a risk of material sticking to the die surface. This adhesion leads to surface defects and increased die wear. To counteract this:
- Nitriding or carburizing of dies enhances surface hardness.
- Graphite-based, boron nitride, or ceramic release agents are applied between the die and the workpiece.
- Plasma nitriding or PVD coatings help increase wear resistance in repeated forging operations.
Understanding the thermal characteristics of the forged metal—especially its melting behavior—guides every aspect of die selection, design geometry, thermal insulation, and operational life expectancy.
Thermal Conductivity vs. Melting Point in Forging
Thermal conductivity and melting point are both thermal properties, but they serve different purposes in forging analysis. Here’s how they interrelate and impact forging operations:
| Property | Melting Point | Thermal Conductivity |
| Definition | Temperature where metal becomes liquid | Rate at which heat passes through metal |
| Role in Forging | Sets temperature boundary | Affects heating time and temperature uniformity |
| Unit | °C or °F | W/m·K |
| Example: Copper | 1,085°C | ~400 W/m·K (very high) |
| Example: Titanium | 1,668°C | ~22 W/m·K (very low) |
Heating Strategy
Metals with high thermal conductivity (like copper or aluminum) heat and cool rapidly, requiring precise thermal control to avoid overheating or underheating.
Low-conductivity metals (like stainless steel or titanium) retain heat longer, making them suitable for longer forging cycles, but they require longer initial heating times.
Temperature Uniformity
Uniformity in temperature is critical for defect-free forging. Uneven heating results in:
- Incomplete deformation.
- Cracking in colder regions.
- Microstructural inconsistency.
Knowing both the melting point and thermal conductivity helps optimize furnace settings, dwell times, and preheating strategies.
Forging Process Types and Temperature Dependencies
The best forging technique for a particular application depends in large part on the melting point of the metal.
Open-Die Forging
- Best for: Large components, simple shapes.
- Temperature Sensitivity: High.
- Melting Point Relevance: Guides the upper limit of forge temperature; overheating leads to burn-through.
- Example: Forging stainless steel blocks at ~1,200°C.
Closed-Die (Impression Die) Forging
- Best for: High-volume, complex shapes.
- Temperature Sensitivity: Medium.
- Melting Point Relevance: Affects die selection and lubrication.
- Example: Aluminum automotive parts forged at ~450°C.
Isothermal Forging
- Best for: Titanium and high-performance alloys.
- Temperature Sensitivity: Very high.
- Melting Point Relevance: Forging performed just below melting point in vacuum/inert atmosphere.
- Example: Jet engine turbine blades.
Cold Forging
- Best for: Small, high-precision parts.
- Temperature Sensitivity: Low.
- Melting Point Relevance: Helps define stress-strain behavior at room temperature.
- Example: Fastener forming from steel rods.
Each process must be matched to a metal whose melting behavior allows the required deformation without failure, sticking, or cracking.
Melting Point and Defect Prevention
A thorough understanding of a metal’s melting point and its thermal behavior is essential to preventing forging defects. Although the metal is not melted during forging, operating too close to its melting point—or too far below it—can result in a variety of flaws that compromise the mechanical integrity and aesthetic quality of the final component.
Overheating and Surface Melting
If forging temperatures unintentionally approach or exceed the melting point:
- Surface melting can occur, creating blisters, pits, or laps.
- Oxidation rates increase significantly, leading to scale formation and poor surface finish.
- Grain growth becomes excessive, reducing material toughness.
- Burning (especially in aluminum, magnesium, and titanium) may occur, resulting in irreversible chemical damage.
To prevent this:
- Maintain a consistent forging temperature 20–30% below the melting point in Kelvin.
- Use thermocouples or infrared cameras to monitor workpiece temperature in real time.
- Implement controlled heating zones in furnaces to avoid hot spots.
Cold Shuts and Incomplete Filling
Conversely, if the forging temperature is too low:
- The material may not flow adequately into die cavities.
- Cold shuts (incomplete bonding between metal streams) may occur, especially in closed-die forging.
- Internal voids or porosity may remain due to inadequate consolidation pressure.
This is common when forging metals with:
- High melting points but low thermal conductivity (e.g., titanium)
- Rapid heat loss during die contact (e.g., aluminum in open dies)
Solutions include:
- Preheating dies to reduce thermal shock and temperature gradients.
- Using insulating coatings on dies to minimize heat loss from the workpiece.
- Increasing press speed to reduce dwell time at suboptimal temperatures.
Cracking and Brittle Fracture
Forging below the recrystallization temperature (especially in high-carbon steels) can lead to:
- Cracking due to low ductility.
- Brittle fracture under compressive stress.
- Laminar tearing when defects from prior processing are not eliminated.
Preventative measures:
- Forge within recommended hot working temperature ranges.
- Use reheat cycles to maintain plasticity during multi-step forging.
- Apply post-forge heat treatment to relieve internal stresses.
Die Failure and Galling
High forging temperatures also affect the die life cycle, especially for metals with:
- Low melting points and high adhesion tendencies (e.g., aluminum)
- High temperatures close to die material softening points
Common die-related failures:
- Galling (material sticking to the die)
- Thermal fatigue cracks
- Erosive wear from oxide particles
Using anti-stick coatings, high-speed lubricants, and advanced die steels are crucial for maintaining tool integrity.
Role of Simulation in Thermal Planning
Modern forging operations increasingly rely on computer-aided engineering (CAE) tools to simulate thermal behavior before actual production. These simulations account for melting points, forging temperature ranges, and heat transfer dynamics.
Forging Process Simulation Software
Tools like DEFORM, Forge®, and QForm allow engineers to model:
- Heat distribution across the billet and dies
- Material flow under different thermal conditions
- Cooling rates after deformation
- Temperature rise due to deformation work
These simulations help:
- Predict potential defect zones
- Identify thermal hotspots on dies
- Fine-tune preheating parameters and press speeds
Melting Point as a Constraint Variable
In simulation workflows, the melting point acts as an upper-bound constraint for:
- Workpiece temperature input
- Material property changes
- Heat-treatment scenarios
Using this constraint ensures the virtual model stays within feasible limits, avoiding unrealistic deformation patterns or temperature overshoots.
Case Example: Simulating Forging of Nickel-Based Superalloys
Forging nickel-based alloys, such Inconel 718, is infamously challenging because of their:
- High melting points (~1,350°C)
- Low thermal conductivity
- High work-hardening rates
Using simulation software, engineers can:
- Predict optimal forging temperature (~980–1,150°C)
- Design die systems to minimize dwell time at high loads
- Prevent hot tearing and ensure uniform grain structure
Simulation significantly reduces trial-and-error costs, die wear, and post-forging rework.
Case Study: Forging Titanium vs. Steel
Let’s contrast how melting point influences forging practices in two popular industrial metals: Titanium and Carbon Steel.
| Property | Titanium | Carbon Steel |
| Melting Point (°C) | ~1,668 | ~1,425–1,530 |
| Thermal Conductivity (W/m·K) | ~22 | ~45–60 |
| Forging Temperature (°C) | 900–1,200 | 1,050–1,250 |
| Atmosphere Requirements | Inert or Vacuum | Normal |
| Tooling Requirement | High-end alloys | H13 die steel |
| Common Defects if Mismanaged | Alpha-case, burning | Decarburization, cracking |
| Common Applications | Aerospace, medical | Automotive, rail |
Key Insights:
- Titanium’s high melting point and low conductivity demand longer heating cycles and more sophisticated forge die systems.
- Forging must occur in oxygen-free environments to avoid “alpha-case” contamination.
- In contrast, carbon steel’s moderate melting point makes it more forgiving in traditional hot forging setups, though scale and decarburization are concerns at high temperatures.
Understanding the melting point not only dictates the forging window but also influences the total process chain—from die material to post-treatment.
Innovations in Temperature Monitoring
Precise temperature control is essential in forging operations to ensure that metals are deformed within their optimal thermal range—safely below the melting point but above the recrystallization threshold. Over the past two decades, technological advances have transformed temperature monitoring into a highly accurate, real-time process, reducing human error and enhancing part quality.
Infrared (IR) Pyrometers
Infrared pyrometers are non-contact devices that measure surface temperatures by detecting thermal radiation. They are widely used in forging lines due to their:
- Rapid response time (milliseconds)
- Ability to measure extremely high temperatures (up to 3,000°C)
- Durability in harsh forging environments
Single-wavelength pyrometers are suited for surfaces with known and constant emissivity, while dual-wavelength or ratio pyrometers are better for varying surface conditions—useful in high-temperature forging near melting points.
Thermal Cameras and Imaging Systems
Thermal cameras generate 2D heat maps of the workpiece and dies, enabling operators to:
- Identify temperature gradients across the billet
- Detect cold spots or overheated zones
- Visually confirm that metal is within forging range
Advanced systems can integrate with AI-based pattern recognition to predict forging defects linked to uneven heating.
Embedded Thermocouples in Dies
For high-precision closed-die forging, thermocouples embedded in the die blocks allow continuous monitoring of die temperature. This helps:
- Prevent die overheating
- Predict thermal fatigue cycles
- Adjust cooling rates dynamically
Modern smart dies feature multiple thermocouple zones connected to data acquisition systems that can control press actuation and cooling in real-time.
Laser-Based Temperature Sensors
Laser sensors can measure temperature with extreme precision and are particularly useful in:
- Induction heating systems, where rapid and localized heating occurs
- Isothermal forging, where uniformity is critical close to the metal’s melting point
They operate on the Doppler effect principle and can track temperature changes at specific points during metal deformation.
Digital Twin Integration
One of the most forward-thinking innovations is the use of digital twins in forging plants. These are real-time virtual models of the physical forging line that:
- Integrate temperature sensor data
- Predict thermal distribution across batches
- Simulate metal behavior under various thermal conditions
By incorporating melting point data into the twin’s algorithms, operators can receive live alerts if temperatures approach unsafe limits, preventing burn-throughs or unnecessary die wear.
Industry Standards and Testing Methods
Maintaining consistent and safe forging temperatures across various metals demands strict adherence to industry standards. These standards define acceptable ranges for forging, inspection methods, and metallurgical benchmarks based on melting points.
Common Industry Standards
| Standard | Governing Body | Purpose |
| ASTM E139 | ASTM International | Standard test methods for creep and stress-rupture of metals |
| ASTM E21 | ASTM International | High-temperature tensile testing |
| AMS 4928 | SAE Aerospace | Forging specifications for titanium and titanium alloys |
| ISO 23788 | ISO | Guidelines for forging machine tools and materials |
| DIN 7527-1 | German Institute (DIN) | Forging process controls and terminology |
These standards often classify forging temperatures relative to the metal’s melting point and specify post-forging mechanical tests.
Testing for Forging Quality
Several tests rely on the thermal history of the forged component, influenced heavily by how close the process operated to the melting point:
- Microstructure analysis: Grain size can reveal overheating or underheating.
- Tensile testing: High temperatures too close to melting can weaken tensile strength.
- Hardness testing (Brinell, Rockwell, Vickers): Evaluates post-forging strength.
- Ultrasonic inspection: Detects voids or cold shuts from improper thermal gradients.
- Surface scale measurement: Excessive oxidation from forging above optimal range.
Documenting and validating that the forging stayed within temperature bounds ensures both regulatory compliance and product reliability.
