In power transmission, rotating machinery, and structural systems, shafts are key to reliable performance. From aerospace to marine, choosing forged or machined shafts impacts strength, safety, and service life.
This article compares both types in terms of manufacturing, properties, fatigue resistance, and applications, with data and technical tables for informed decisions.
What Is a Shaft?
A shaft is a rotating or stationary component used to transmit torque and motion between two or more mechanical parts. Shafts can vary greatly in size—from small spindles in motors to massive crankshafts in ship engines—and are subjected to high stress, including torsion, bending, and vibration.
Typical applications include:
- Transmission systems
- Axles in vehicles
- Industrial rollers
- Gearboxes
- Turbines
- Hydraulic pumps
- Propeller systems

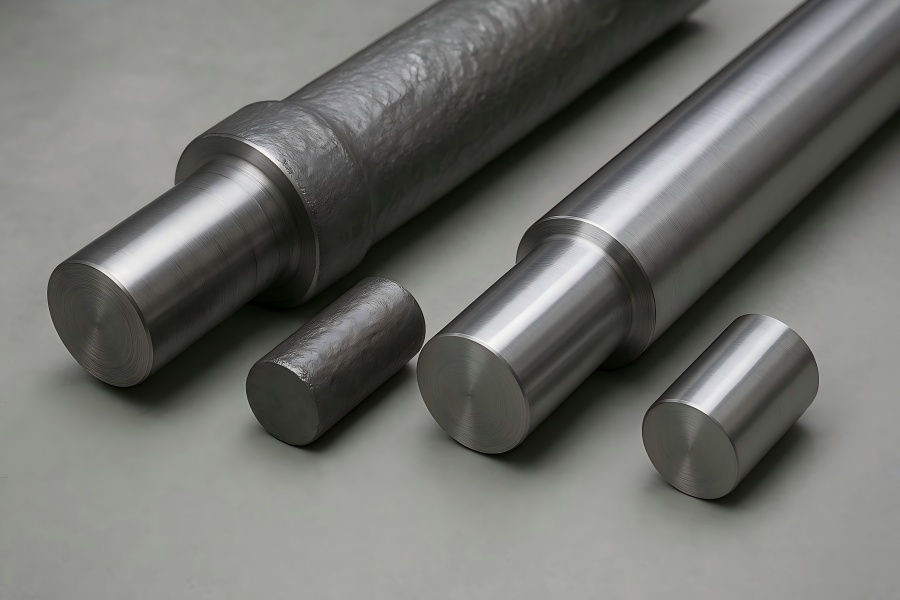

Manufacturing Overview: Forged vs. Machined Shafts
The production process is where the main distinction is found:
Forged Shafts
Forging involves heating a billet and then deforming it using compressive force to shape the shaft. The process can be:
- Open-die forging (for large shafts)
- Closed-die forging (for complex shapes)
- Ring forging (for hollow or flanged parts)
- Forging aligns the metal grain flow with the shaft’s shape, resulting in improved mechanical properties.
Machined Shafts
Machined shafts are cut or turned from a solid round bar or plate using CNC lathes or mills. This subtractive process removes material to reach the desired dimensions.
While machining allows precise tolerances, the grain flow remains unchanged and can be interrupted, leading to stress concentrations.
Grain Flow Comparison
The most critical difference between forging and machining lies in grain orientation.
| Feature | Forged Shaft | Machined Shaft |
| Grain Flow | Aligned with shaft profile | Interrupted, linear |
| Weak Points | Fewer, due to continuous flow | More prone to stress fractures |
| Strength | Higher in all directions | Lower at stress-concentration zones |
| Fatigue Resistance | Superior | Inferior |
Grain flow continuity in forged shafts is particularly important in components under cyclic loads.
Mechanical Properties Comparison
Let’s compare key mechanical characteristics using typical forged and machined AISI 4140 steel shafts:
| Property | Forged Shaft (AISI 4140) | Machined Shaft (AISI 4140) |
| Tensile Strength | 980 MPa | 850 MPa |
| Yield Strength | 655 MPa | 540 MPa |
| Elongation | 16% | 13% |
| Impact Toughness (Charpy V) | >20 J at -20°C | 12-15 J at -20°C |
| Fatigue Strength | ~490 MPa | ~380 MPa |
| Hardness | 28–32 HRC | 25–29 HRC |
Strength and Load Capacity
Forged Shaft Strength
- Higher tensile and yield strength due to refined microstructure.
- Greater ability to withstand impact, shock loads, and torsion.
- Uniformity across the shaft diameter.
Machined Shaft Strength
- Adequate for moderate loads.
- Weak points may develop along machining tool paths.
- Not ideal for fluctuating or reverse loads.
A forged shaft can support loads 15–30% higher than a comparable machined shaft under identical dimensions.
Longevity and Fatigue Resistance
One of the biggest benefits of forging is its impact on shaft lifespan.
- Fatigue life of forged shafts is typically 2–3x higher than machined shafts.
- Grain orientation reduces crack propagation.
- Better resistance to corrosion fatigue, thermal cycling, and vibration.
In contrast, machined shafts are prone to micro-crack initiation at the surface due to machining marks or stress risers.
Dimensional Accuracy and Surface Finish
| Factor | Forged Shaft | Machined Shaft |
| Dimensional Tolerance | ±0.5 mm (after finish machining) | ±0.01 mm |
| Surface Finish | Rough (Ra 6.3–25 µm) | Smooth (Ra < 1.6 µm) |
| Need for Final Machining | Yes | No (if machined to spec) |
While forged shafts require secondary machining for tight tolerances, machined shafts offer better initial surface quality. However, advancements in near-net shape forging can minimize machining needs.
Cost Comparison
| Cost Element | Forged Shaft | Machined Shaft |
| Raw Material Use | Efficient, less waste | More waste (up to 60%) |
| Manufacturing Time | Slower (requires heating, forging, machining) | Faster (direct machining) |
| Equipment Investment | Higher | Lower |
| Cost per Unit (Small Batch) | Higher | Lower |
| Cost per Unit (Large Volume) | Competitive or lower | Higher due to waste |
Though forged shafts seem costlier upfront, they often yield lower lifecycle costs due to reduced failures and replacements.
Applications
Forged shafts are preferred in:
- Aerospace (jet engine shafts, helicopter rotor shafts)
- Automotive (crankshafts, axle shafts)
- Marine (propeller shafts, rudder shafts)
- Wind energy (main shaft, rotor shaft)
- Mining (crusher shafts, conveyor shafts)
- Oil & Gas (drill shafts, subsea equipment)
Machined shafts are used in:
- Low-load equipment
- Office machinery
- Consumer products
- Some transmission components where fatigue life is not critical
Failure Rate Comparison (Industry Data)
| Application | Failure Rate (Forged Shaft) | Failure Rate (Machined Shaft) |
| Wind Turbine Main Shaft | <0.2% over 10 years | >1.1% over 10 years |
| Automotive Crankshaft | <0.1% | 0.5–0.9% |
| Marine Propeller Shaft | 0.3% | >1.5% |
| Mining Equipment Drive Shaft | 0.5% | 2.0% |
Forged shafts show consistently lower failure rates, especially in dynamic, high-load environments.
Standards and Certifications
Forged shafts for critical use typically adhere to stricter standards:
- ASTM A668 (for carbon and alloy steel forgings)
- ISO 10275
- ASME SA-182 (for pressure vessel components)
- API 6A (oilfield equipment)
Machined shafts may be made from standard bars conforming to:
- ASTM A108 (cold-drawn bar)
- ASTM A36 (mild steel)
- EN 10277 (bright steel bars)
Inspection and Testing Methods
Forged Shafts
- Ultrasonic Examination (UT)
- Magnetic Particle Inspection (MPI)
- Radiography (for critical parts)
- Hardness and microstructure tests
Machined Shafts
- Dimensional inspection
- Visual flaw detection
- Occasionally UT or MPI (less common)
Forged shafts undergo more rigorous quality checks, especially in aerospace and defense.
Environmental Impact
| Category | Forged Shaft | Machined Shaft |
| Energy Use | High (due to heating) | Moderate |
| Material Waste | Low | High |
| Carbon Emissions | Higher (if not optimized) | Lower per piece but higher waste footprint |
| Recycling Efficiency | High | High |
Although forging is energy-intensive, material efficiency is higher. Near-net shape forging is helping reduce carbon footprints.
Customization and Lead Time
Forged shafts can be customized in shape (steps, flanges, tapers), but require tooling and lead time. Machined shafts are ideal for rapid prototyping but are limited by bar stock availability.
| Feature | Forged Shaft | Machined Shaft |
| Custom Geometry | High (flexible with dies) | Limited |
| Lead Time (Prototype) | 2–6 weeks | 1–2 weeks |
| Lead Time (Production) | 6–12 weeks | 4–8 weeks |
Case Study: Wind Turbine Shaft
| Shaft Type | Forged | Machined |
| Material | 42CrMo4 (forged) | AISI 1045 (machined) |
| Diameter | 600 mm | 600 mm |
| Fatigue Cycles (Before Crack) | >10 million | <4 million |
| Cost (Lifecycle, 20 years) | $45,000 | $60,000 (due to replacements) |
Forged shafts in wind turbines have demonstrated superior fatigue performance and lower total cost of ownership.
Conclusion
Application requirements play a major role in the decision between machined and forged shafts.
- When durability, safety, strength, and resistance to impact are important considerations, choose forged shafts.
- Choose machined shafts for prototyping, cost-sensitive components, or low-stress applications.
